/home/travis/build/open62541/open62541/src/server/ua_server_internal.h File Reference

#include "ua_util.h"
#include "ua_server.h"
#include "ua_session_manager.h"
#include "ua_securechannel_manager.h"
#include "ua_nodestore.h"

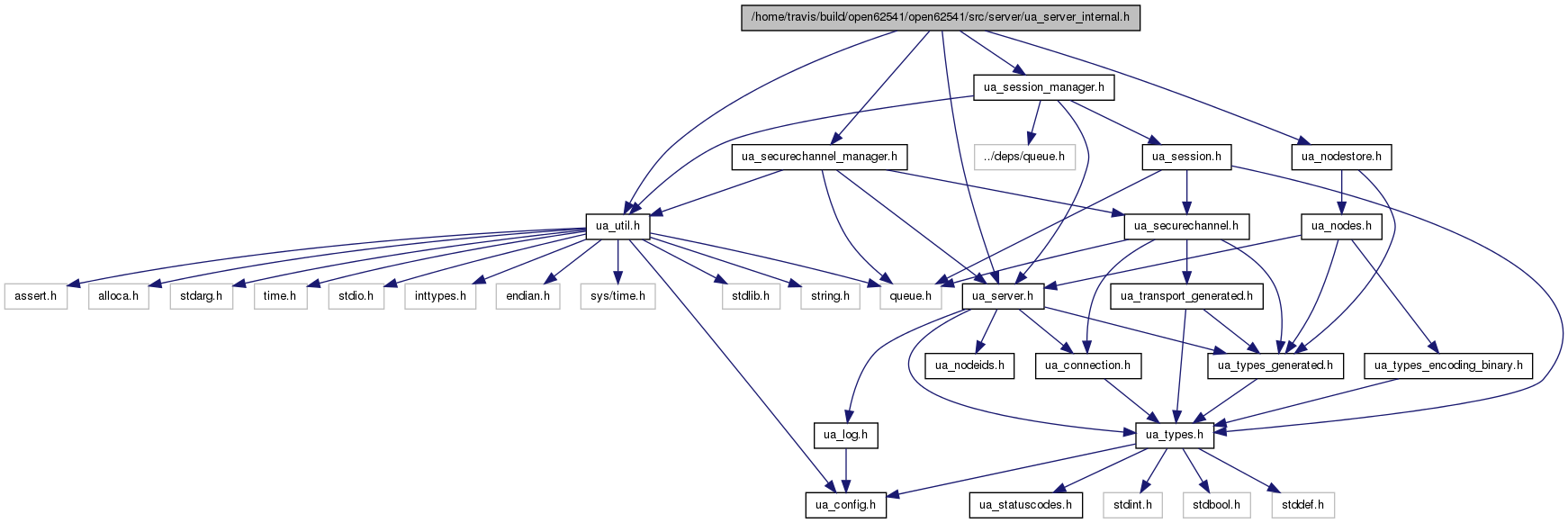

Include dependency graph for ua_server_internal.h:

Go to the source code of this file.

Data Structures
struct	UA_ExternalNamespace
struct	UA_Server
struct	UA_Server::TimedWorkList
Defines
#define	PRODUCT_URI   "http://open62541.org"
#define	ANONYMOUS_POLICY   "open62541-anonymous-policy"
#define	USERNAME_POLICY   "open62541-username-policy"
#define	ADDREFERENCE(NODEID, REFTYPE_NODEID, TARGET_EXPNODEID)
Functions
void	UA_Server_processBinaryMessage (UA_Server *server, UA_Connection *connection, UA_ByteString *msg)
UA_AddNodesResult	UA_Server_addNodeWithSession (UA_Server *server, UA_Session *session, UA_Node *node, const UA_ExpandedNodeId parentNodeId, const UA_NodeId referenceTypeId)
UA_AddNodesResult	UA_Server_addNode (UA_Server *server, UA_Node *node, const UA_ExpandedNodeId parentNodeId, const UA_NodeId referenceTypeId)
UA_StatusCode	UA_Server_addReferenceWithSession (UA_Server *server, UA_Session *session, const UA_AddReferencesItem *item)
void	UA_Server_deleteTimedWork (UA_Server *server)

---

Data Structure Documentation

struct UA_ExternalNamespace

Mapping of namespace-id and url to an external nodestore. For namespaces that have no mapping defined, the internal nodestore is used by default.

Data Fields
UA_ExternalNodeStore	externalNodeStore
UA_UInt16	index
UA_String	url

struct UA_Server

Data Fields
UA_DateTime	buildDate
UA_ServerConfig	config
UA_ApplicationDescription	description
UA_EndpointDescription *	endpointDescriptions
UA_Int32	endpointDescriptionsSize
UA_ExternalNamespace *	externalNamespaces
size_t	externalNamespacesSize
UA_Logger	logger
UA_String *	namespaces
size_t	namespacesSize
UA_ServerNetworkLayer *	networkLayers
size_t	networkLayersSize
UA_NodeStore *	nodestore
UA_UInt32	random_seed
UA_SecureChannelManager	secureChannelManager
UA_ByteString	serverCertificate
UA_SessionManager	sessionManager
UA_DateTime	startTime
struct TimedWorkList	timedWork

struct UA_Server::TimedWorkList

Data Fields
struct TimedWork *	lh_first

---

Define Documentation

#define ADDREFERENCE	(		NODEID,
			REFTYPE_NODEID,
			TARGET_EXPNODEID
	)

Value:

do {     \
        UA_AddReferencesItem item;                                      \
        UA_AddReferencesItem_init(&item);                               \
        item.sourceNodeId = NODEID;                                     \
        item.referenceTypeId = REFTYPE_NODEID;                          \
        item.isForward = UA_TRUE;                                       \
        item.targetNodeId = TARGET_EXPNODEID;                           \
        UA_Server_addReference(server, &item);                          \
    } while(0)

#define ANONYMOUS_POLICY   "open62541-anonymous-policy"

#define PRODUCT_URI   "http://open62541.org"

#define USERNAME_POLICY   "open62541-username-policy"

---

Function Documentation

UA_AddNodesResult UA_Server_addNode	(	UA_Server *	server,
		UA_Node *	node,
		const UA_ExpandedNodeId	parentNodeId,
		const UA_NodeId	referenceTypeId
	)

UA_AddNodesResult UA_Server_addNodeWithSession	(	UA_Server *	server,
		UA_Session *	session,
		UA_Node *	node,
		const UA_ExpandedNodeId	parentNodeId,
		const UA_NodeId	referenceTypeId
	)

UA_StatusCode UA_Server_addReferenceWithSession	(	UA_Server *	server,
		UA_Session *	session,
		const UA_AddReferencesItem *	item
	)

void UA_Server_deleteTimedWork

(

UA_Server *

server

)

void UA_Server_processBinaryMessage	(	UA_Server *	server,
		UA_Connection *	connection,
		UA_ByteString *	msg
	)
